In the last articles, we have learned Configuring Snapshot and Transactional SQL Server replication and Configuring Peer to Peer and Merge SQL replication. Now, once we configured SQL Server replication, there will be some instances where we need to modify the SQL Server replication configuration as per the project updates. In this article, we will learn a few modifications in the existing SQL Replication such as Add new article, drop an article and change the Snapshot folder path and data filter in the current SQL Server replication.
在上一篇文章中，我們學習了配置快照和事務型SQL Server復制以及配置點對點和合并SQL復制 。 現在，一旦我們配置了SQL Server復制，就會有一些實例需要根據項目更新來修改SQL Server復制配置。 在本文中，我們將學習對現有SQL復制的一些修改，例如添加新文章，刪除文章并更改當前SQL Server復制中的Snapshot文件夾路徑和數據過濾器。
![]()
將新文章添加到現有已發布的數據庫中 (Add new Articles into the existing published database)
In this section, we will learn, Add a new article into the existing published database. Once we created the publication, the publication contains few sets of database objects like tables, views and stored procedures. As per the project requirement sometimes we need to create new tables or views or stored procedures into the existing published database for some calculations or storing specific limited data. If we also wish to replicate those tables or views or stored procedures into the current SQL replication, then we need to add new database objects into the published database. This section will help to insert new articles into the existing published database of the SQL Server replication.
在本節中，我們將學習將新文章添加到現有已發布的數據庫中。 創建發布后，發布包含幾組數據庫對象，例如表，視圖和存儲過程。 根據項目要求，有時我們需要在現有的已發布數據庫中創建新表或視圖或存儲過程，以進行一些計算或存儲特定的有限數據。 如果我們還希望將這些表或視圖或存儲過程復制到當前SQL復制中，則需要將新的數據庫對象添加到已發布的數據庫中。 本節將幫助將新文章插入到SQL Server復制的現有已發布數據庫中。

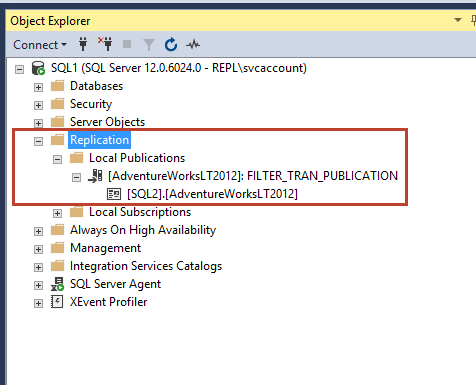

I have already configured the transactional SQL replication on the node SQL1 for the database AdventuresWorksLT2012 as shown in the following fig.
我已經在數據庫AdventuresWorksLT2012的節點SQL1上配置了事務SQL復制，如下圖所示。
Before adding a new article, first, we need to check, which are the database objects are already part of the SQL Server replication. Right-click the configured publication of the database and Go to Publication properties where we will get a list of articles which are part of the SQL replication.
在添加新文章之前，首先，我們需要檢查哪些數據庫對象已經是SQL Server復制的一部分。 右鍵單擊已配置的數據庫發布，然后轉到發布屬性 ，我們將在其中獲得屬于SQL復制的文章列表。
In the following fig. articles which ticked are already part of SQL Server replication.
在下圖。 勾選的文章已經是SQL Server復制的一部分。

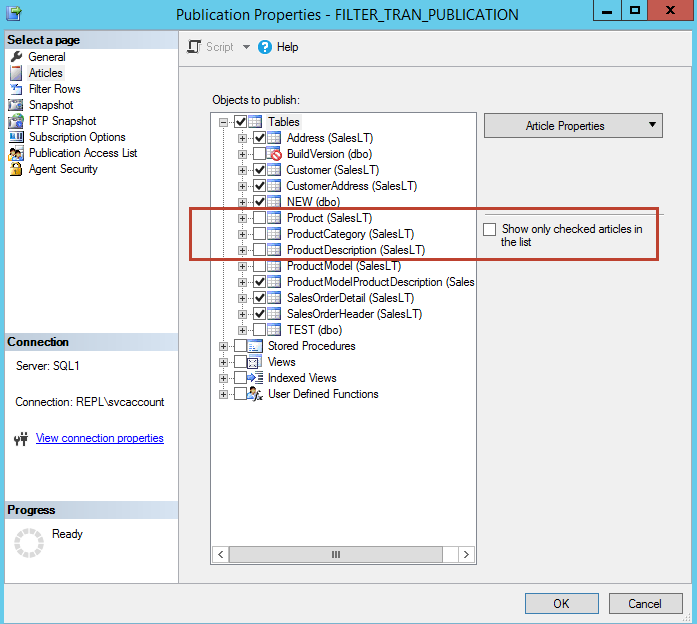

The new articles which need to add into publication database, First, un-check Show only checked items in the list option as shown in the following fig. we will get a list of all the objects from the database. We will select new tables ProductCategory and ProductDescription from the following list and click OK.
需要添加到發布數據庫中的新文章，首先，取消選中l(wèi)is t選項中的“僅顯示選中的項目”，如下圖所示。 我們將從數據庫中獲取所有對象的列表。 我們將從下面的列表中選擇新表ProductCategory和ProductDescription ，然后單擊OK。

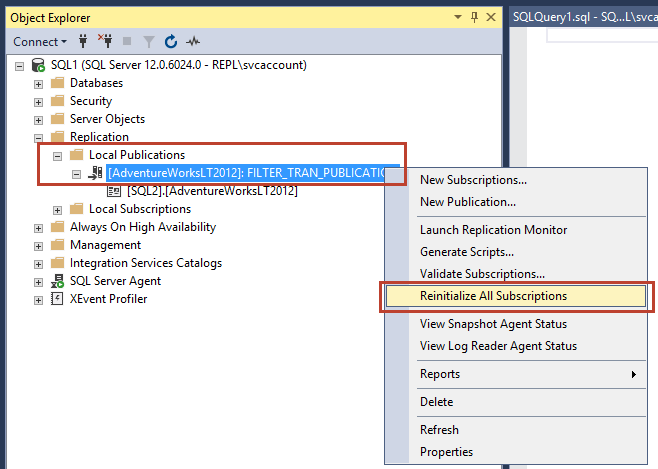

Once we added the new list of articles in the current publication, right-click Configured publication and select Reinitialize all Subscription as the following.
一旦我們在當前出版物中添加了新的文章列表，請右鍵單擊“配置的出版物”，然后選擇“ 重新初始化所有訂閱 ”，如下所示。

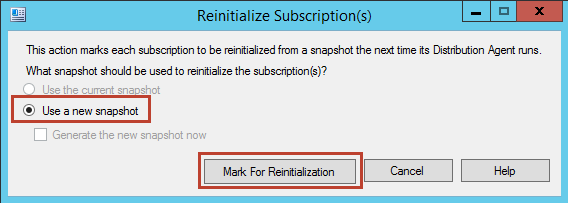

Click on the Use a new snapshot; this option will able to create a new snapshot till time and click on Mark for Reinitialization.
單擊“ 使用新快照” ； 該選項將能夠創建一個新的快照，直到出現時間，然后單擊“ 標記為重新初始化” 。

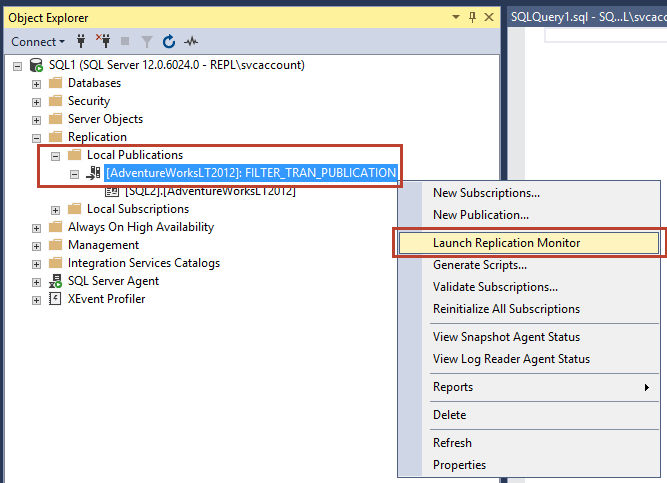

Right-click configured publication and Select Launch Replication Monitor.
右鍵單擊配置的發布，然后選擇啟動復制監視器 。
Go to Agent tab as shown in the following.
轉到代理選項卡 ，如下所示。

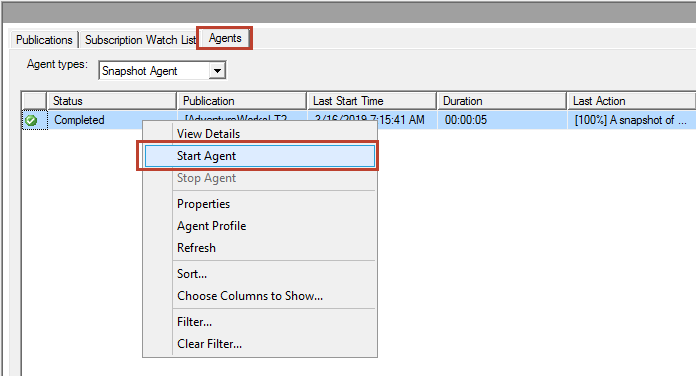

Right-click on snapshot section and click start agent, this process will create a new snapshot after adding the new articles in the current publication and will be used for the further SQL replication process.
右鍵單擊快照部分，然后單擊啟動代理 ，此過程將在當前出版物中添加新文章后創建一個新快照，并將用于進一步SQL復制過程。

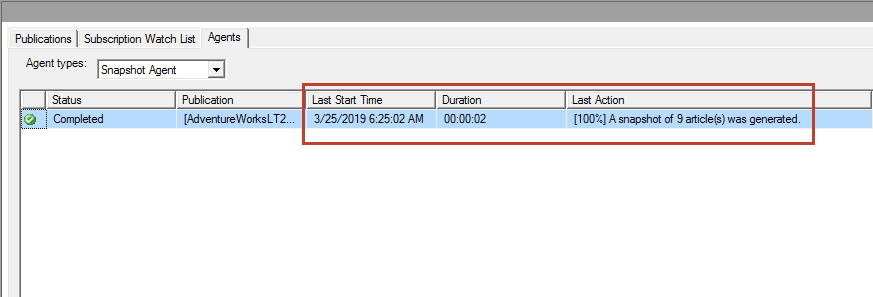

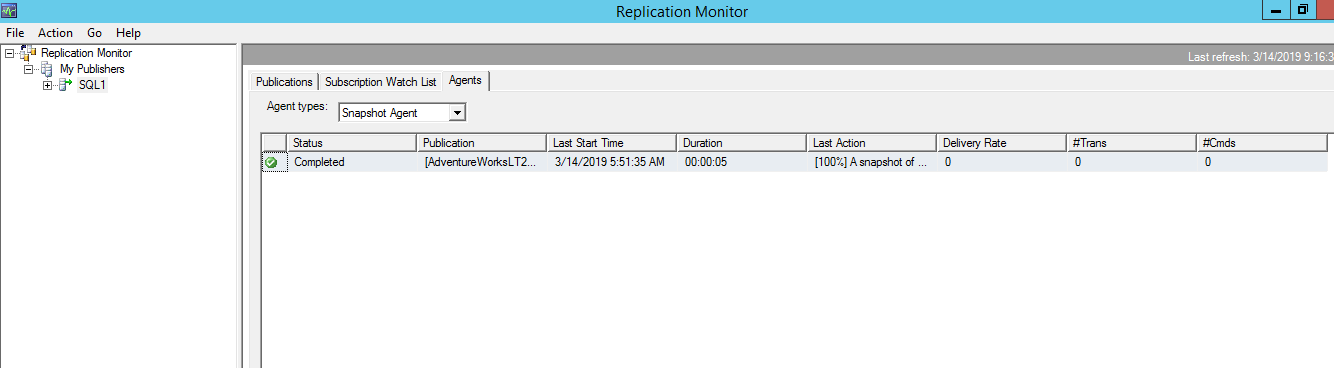

After running agent, we can check Last start time and last action and duration of snapshot run as shown in the following window.
運行代理后，我們可以檢查快照的 上次啟動時間 ， 上次操作和快照的持續時間，如下窗口所示。

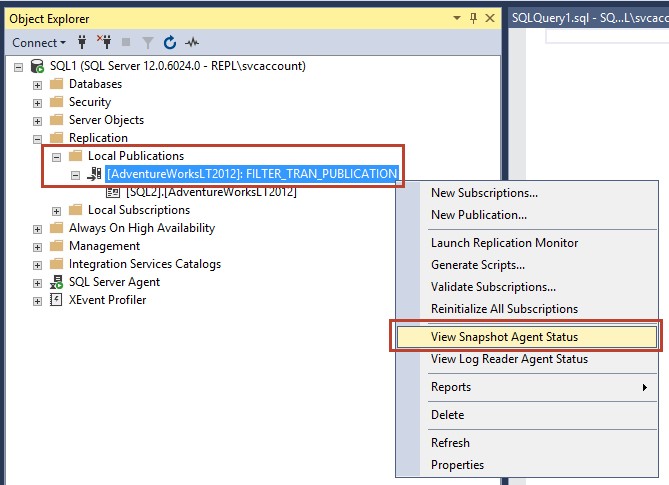

After creating a new snapshot, we will verify the status of the snapshot agent. Right-click the publication and select View Snapshot Agent Status as the following.
創建新快照后，我們將驗證快照代理的狀態。 右鍵單擊發布，然后選擇“ 查看快照代理狀態 ”，如下所示。

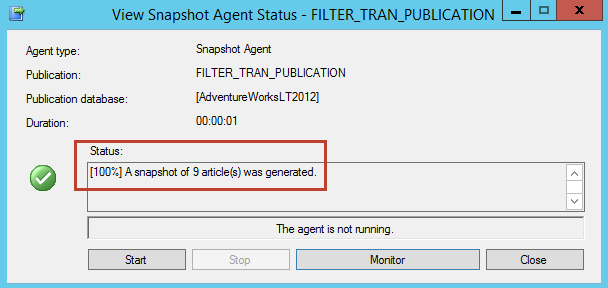

Snapshot agent status is in a healthy state. A snapshot of 9 articles generated as shown on the following fig.
快照代理狀態為健康狀態。 生成的9個文章的快照，如下圖所示。

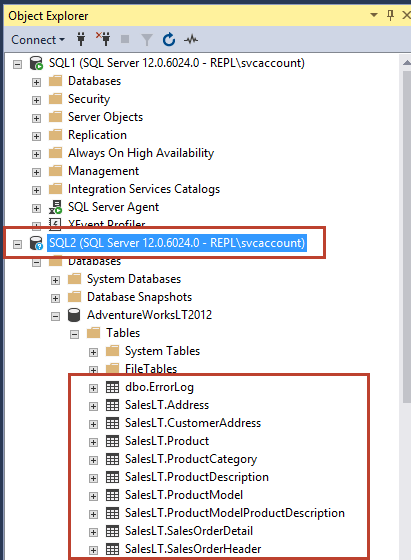

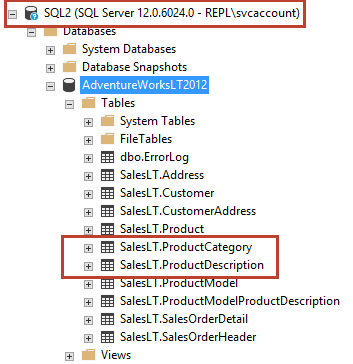

After adding new articles in the current publication, we can verify that new articles have added to the subscriber server SQL2 as shown in the following fig.
在當前出版物中添加新文章之后，我們可以驗證新文章已添加到訂戶服務器SQL2中，如下圖所示。
![]()
從出版物中刪除表 (Drop Table from the publication)
In this section, we will learn about to drop a table from the publication.
在本節中，我們將學習從出版物中刪除表格。

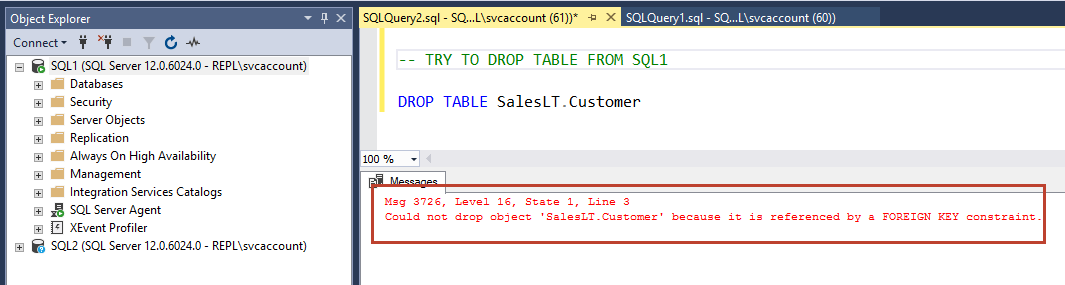

The table Customer of the database AdventureWorksLT_2012 is part of the SQL Server replication. We will try to drop it as the following; however, it will not allow us to drop it because a table configured as an article in the SQL replication and It will throw an error as shown in the following.
數據庫AdventureWorksLT_2012的 客戶表是SQL Server復制的一部分。 我們將嘗試如下刪除它； 但是，它不允許我們刪除它，因?yàn)樵赟QL復制中配置為項目的表會引發錯誤，如下所示。

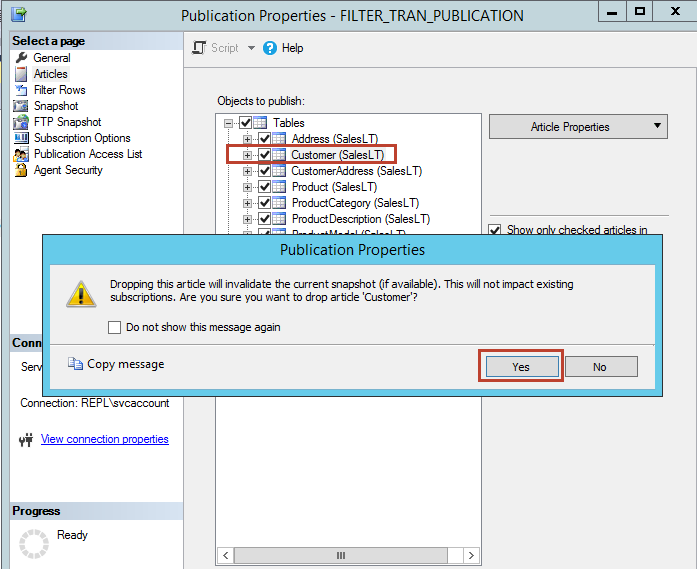

Before dropping a table, first, we need to remove a table from the publication. Right-click publication and Go to Publication Properties. So, we want to drop a table Customer, so Let’s uncheck it from the list of objects to publish section. Once we uncheck it, we will get a pop-up warning click Yes.
在刪除表之前，首先，我們需要從發布中刪除表。 右鍵單擊發布，然后轉到發布屬性 。 因此，我們要?jiǎng)h除一個表Customer ，因此讓我們從要發布的對象列表中取消選中它。 取消選中它后，我們將彈出警告，單擊是 。

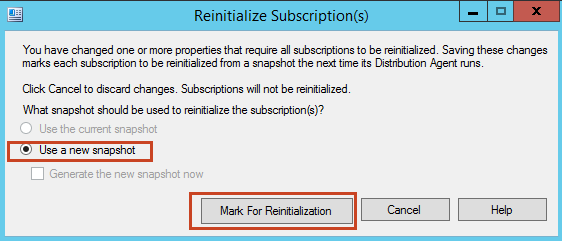

Once clicked on Yes, we will get a pop-up to create a new snapshot. Select Use a new snapshot and click Mark for Reinitialization.
單擊“是”后，我們將彈出一個窗口以創建一個新快照。 選擇“ 使用新快照” ， 然后單擊“ 標記為重新初始化” 。

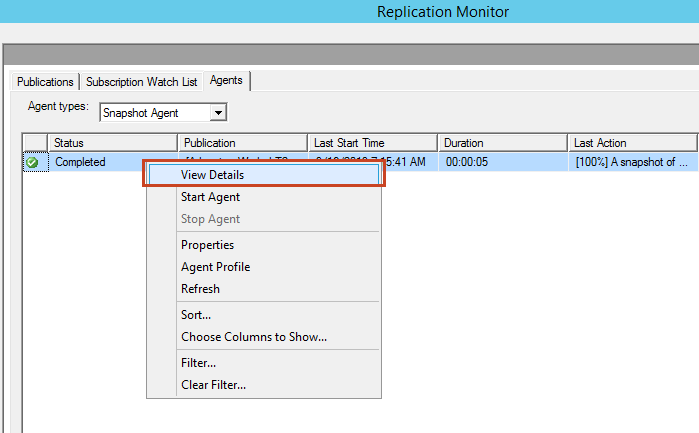

Right-click publication and Go to Replication monitor. Right-click view details.
右鍵單擊發布，然后轉到“復制”監視器 。 右鍵單擊查看詳細信息 。

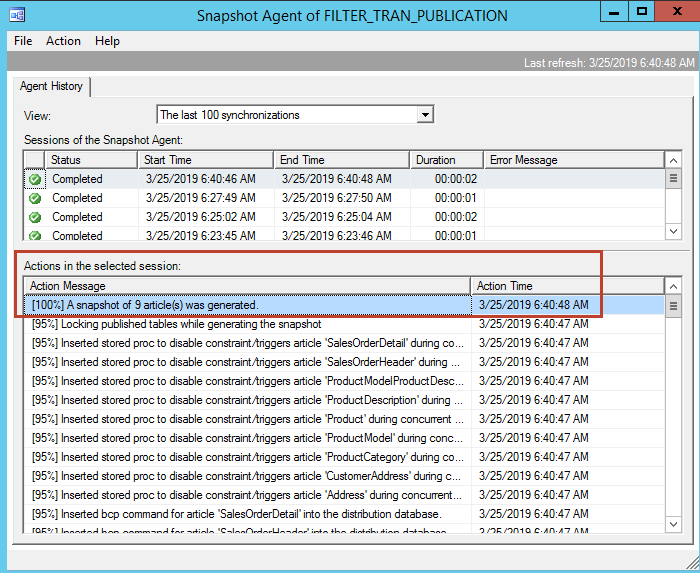

The following section gives us the history of the snapshot agent. The next part shows nine articles have generated after removing one article from the publication.
下一節為我們提供了快照代理的歷史記錄。 下一部分顯示從出版物中刪除一篇文章后生成的九篇文章。

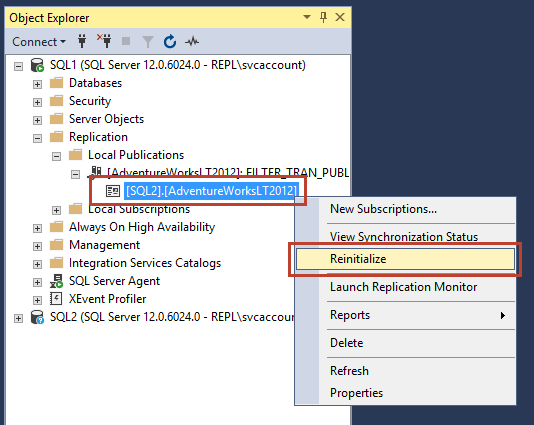

Right-click publication and click Reinitialize
用鼠標右鍵單擊發布，然后單擊重新初始化

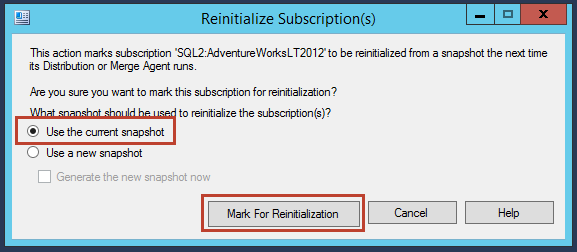

Click Use the current snapshot to reflect the results on the subscriber.
單擊“ 使用當前快照以將結果反映到訂閱服務器上”。
Drop the table on the publisher SQL1 as the following
將表放在發布服務器SQL1上，如下所示
On the subscriber SQL2, we can verify the table removed from the subscriber.
在訂戶SQL2上，我們可以驗證從訂戶中刪除的表。
![]()
更改快照文件夾路徑 (Change Snapshot folder Path)

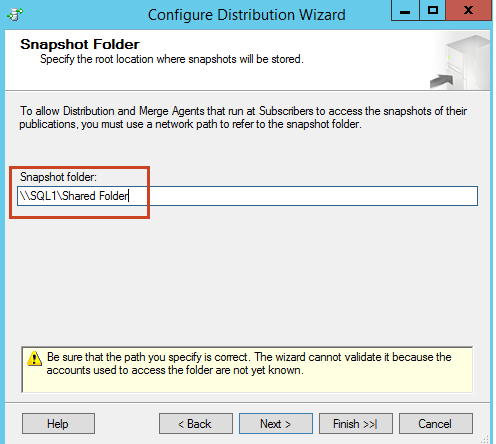

While configuring SQL Server Distribution database, we had given the following snapshot folder path. In this section, we will learn to change the snapshot folder path in the from the current distribution.
在配置SQL Server Distribution數據庫時，我們給出了以下快照文件夾路徑。 在本節中，我們將學習從當前發行版更改的快照文件夾路徑。
Right-click publication and Go to properties.
右鍵單擊發布，然后轉到屬性 。

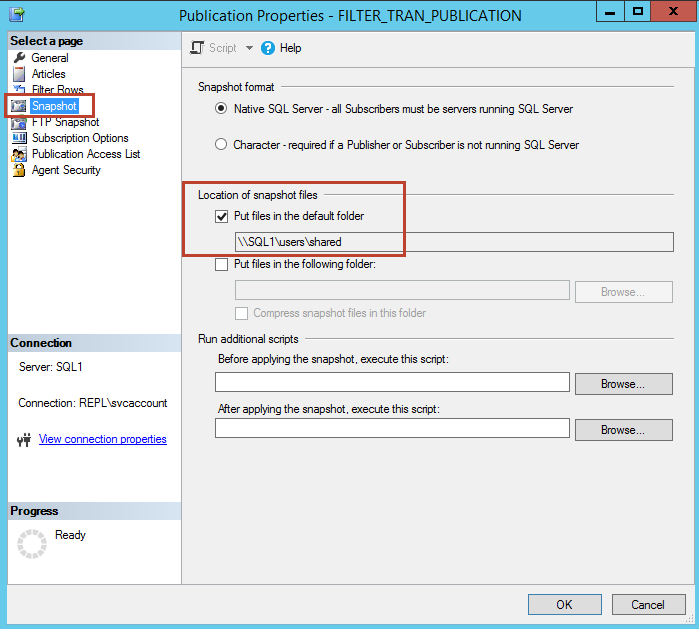

Go to Snapshot page on the left side and check current snapshot files path.
轉到左側的“ 快照”頁面 ，并檢查當前快照文件的路徑。

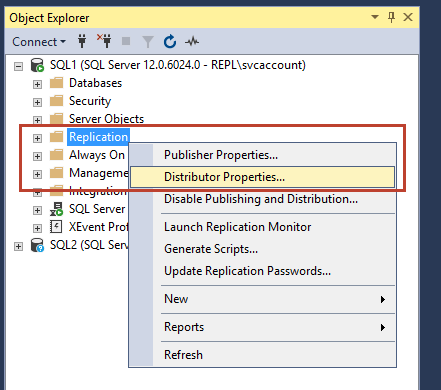

To change the path, Right-click Replication folder and click Distribution Properties.
要更改路徑，請右鍵單擊“復制”文件夾 ，然后單擊“ 分發屬性” 。
In the Publisher page section, click on the icon in the following fig.
在“發布者”頁面部分中，單擊下圖中的圖標。

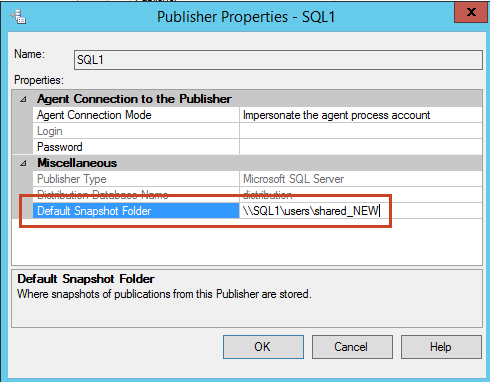

Provide the new correct path and click OK
提供新的正確路徑，然后單擊“ 確定”。
![]()
資料篩選器 (Data Filter)
SQL Server replication provides an excellent feature to filter the data using the Column data filter. In the data filter, we will able to show the column which we want to display for the reposting purpose. We can remove the column which contains sensitive information like customer name, customer email, credit card, etc.
SQL Server復制提供了一項出色的功能，可以使用列數據篩選器篩選數據。 在數據過濾器中，我們將能夠顯示要重新發布的列。 我們可以刪除包含敏感信息的列，例如客戶名稱，客戶電子郵件，信用卡等。
In the project environment, we build a dashboard in the tableau framework. Client vendors used to access those tableau dashboards for data analysis purposes. In that, we want to show data information of the one particular vendor to that specific vendor only. We do not want to show one vendor information to another vendor. So to limit data visibility, we will set-up SQL Server replication with data filter option.
在項目環境中，我們在tableau框架中構建一個儀表板。 客戶端供應商過去曾訪問這些Tableau儀表板以進行數據分析。 這樣，我們只想向該特定賣方顯示一個特定賣方的數據信息。 我們不想將一個供應商信息顯示給另一供應商。 因此，為了限制數據可見性，我們將使用數據過濾器選項設置SQL Server復制。
Once the distribution database configured, we will proceed to set the publication.
配置分發數據庫后，我們將繼續設置發布。

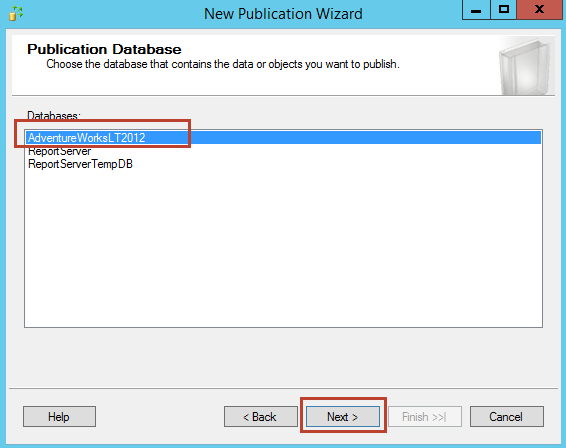

Right-click Replication folder and select New Publication. Select the database AdventureWorksLT2012 as the following and click Next
右鍵單擊復制文件夾，然后選擇新建發布 。 選擇數據庫AdventureWorksLT2012 ，如下所示，然后單擊“下一步”。

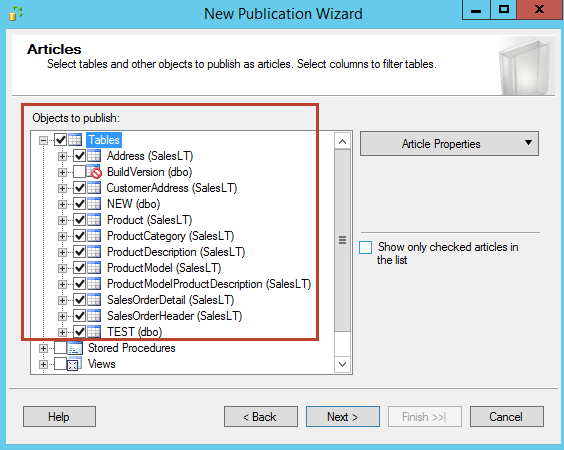

Select the required database objects and click Next
選擇所需的數據庫對象，然后單擊“ 下一步”。

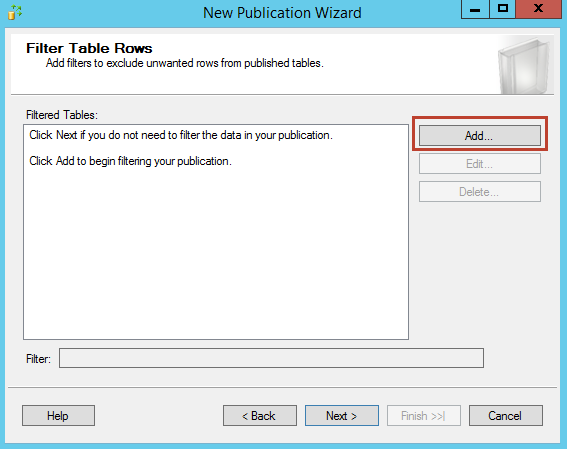

In the Filter Table Rows window, if we do not want to filter data, we can skip this step. Now we need to filter data so that we will configure this section window. Click on Add as shown in the following.
在“ 過濾表行”窗口中，如果不想過濾數據，則可以跳過此步驟。 現在我們需要過濾數據，以便我們配置此部分窗口。 單擊添加 ，如下所示。
Select the table we need to use for the data filter. We selected the table Customer from the SalesLT schema. Next, we need to add the column which contains sensitive information on the right-side filter statement. We will apply the condition for the specified column, and it will show the results only for the conditional statement.
選擇我們需要用于數據過濾器的表。 我們從SalesLT模式中選擇了表Customer 。 接下來，我們需要在右側的filter語句上添加包含敏感信息的列。 我們將條件應用于指定的列，并且它將僅顯示條件語句的結果。

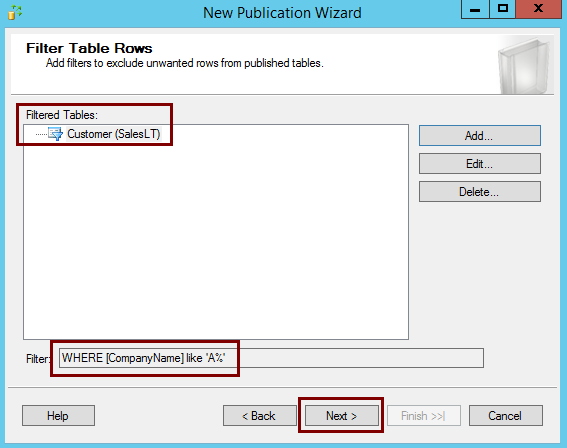

In this case, we added the column CompanyName for the condition; company name starts with A
在這種情況下，我們?yōu)闂l件添加了CompanyName列； 公司名稱以A開頭
Once we added the table Customer in the filter section as shown in the following fig.
一旦我們在過濾器部分中添加了表Customer ，如下圖所示。

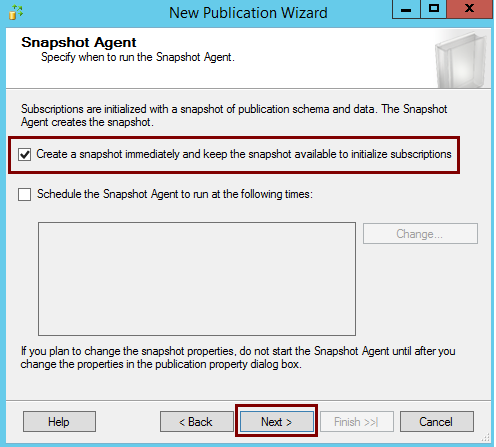

In the Snapshot section, select a checkbox for Create a snapshot and click Next.
在“ 快照”部分中 ，選中“ 創建快照”復選框，然后單擊“ 下一步” 。

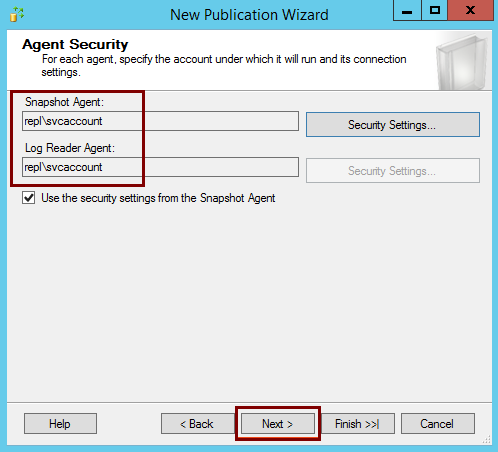

In the Agent Security, configure the service account for the snapshot agent and the log reader agent as the following and click Next.
在“ 代理安全性”中 ，如下配置快照代理和日志讀取器代理的服務帳戶，然后單擊“下一步”。

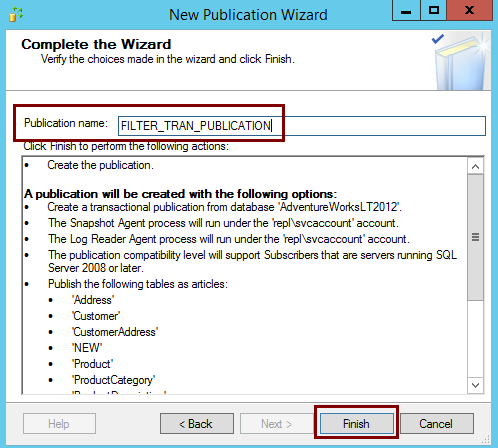

In the complete wizard window, provide publication name as the following and click Finish.
在完整的向?qū)Т翱谥?/span> ，提供以下發布名稱，然后單擊“ 完成” 。

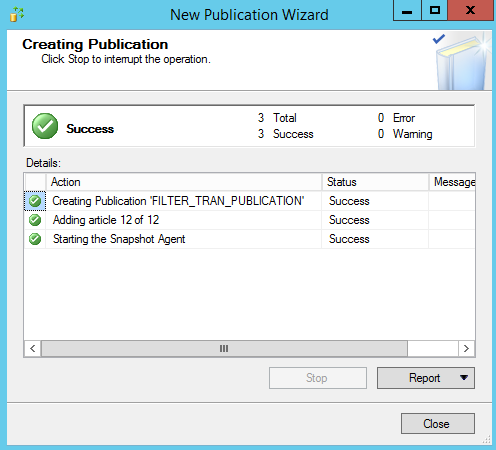

Publication is configured successfully as the following.
發布成功配置如下。
![]()
訂戶上的數據驗證 (Data Verification on the Subscriber)
In this step, we will verify the data; On the Publisher server SQL1, we will retrieve records from the table Customer. We can see, the column CompanyName shows the values for all the company name.
在這一步中，我們將驗證數據； 在發布服務器SQL1上，我們將從表Customer中檢索記錄。 我們可以看到， CompanyName列顯示了所有公司名稱的值。

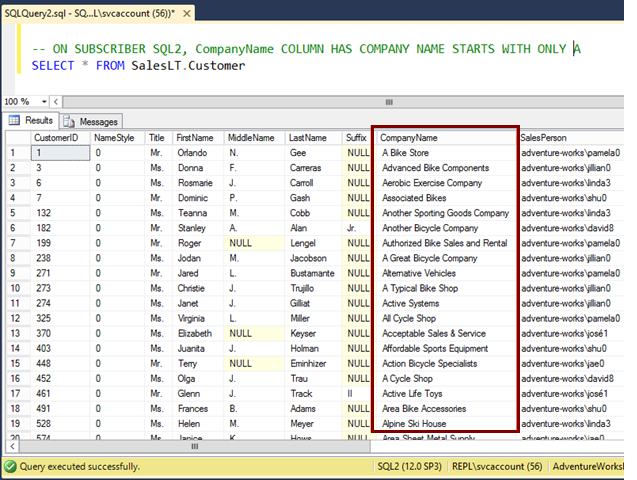

In this step, we will verify the data on the Subscriber server SQL2. When we retrieved records for the same table on the subscriber server SQL2, we will get filter data for the condition which we have specified in the filter section. We got the company name which starts with only character A as shown in the following fig.
在此步驟中，我們將驗證訂閱服務器SQL2上的數據。 當我們在訂閱服務器SQL2上檢索同一表的記錄時，我們將獲得在filter部分中指定的條件的過濾器數據。 我們得到的公司名稱僅以字符A開頭，如下圖所示。
?
